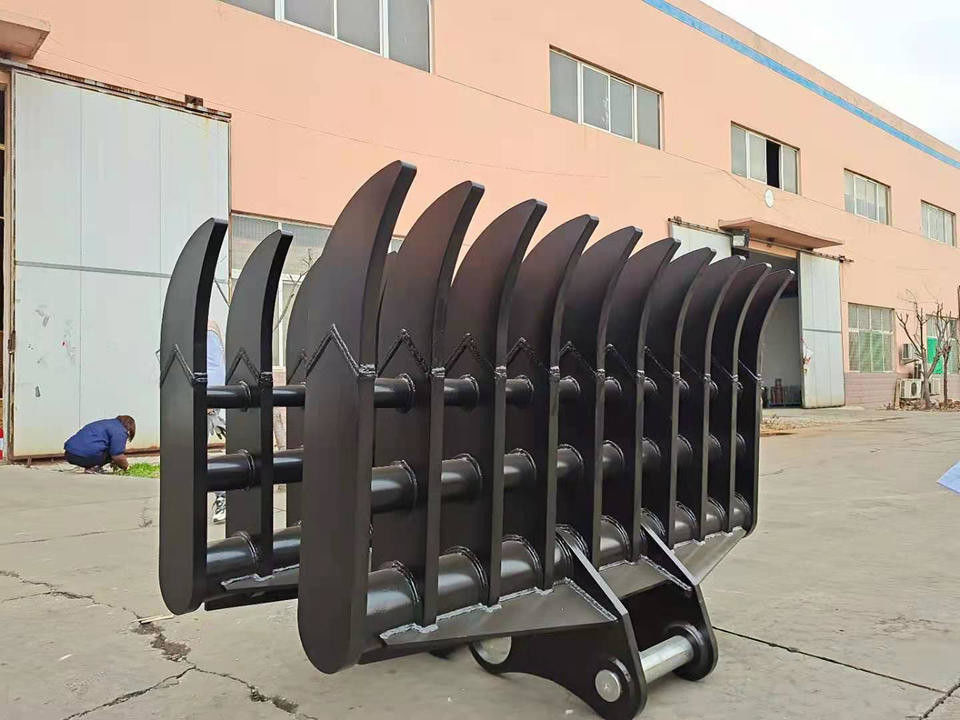

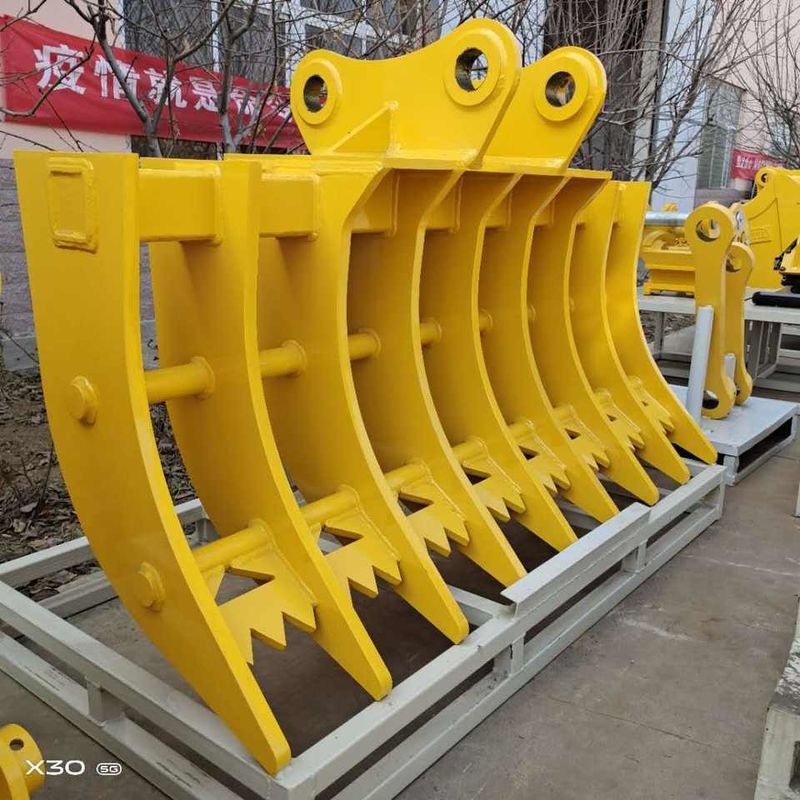

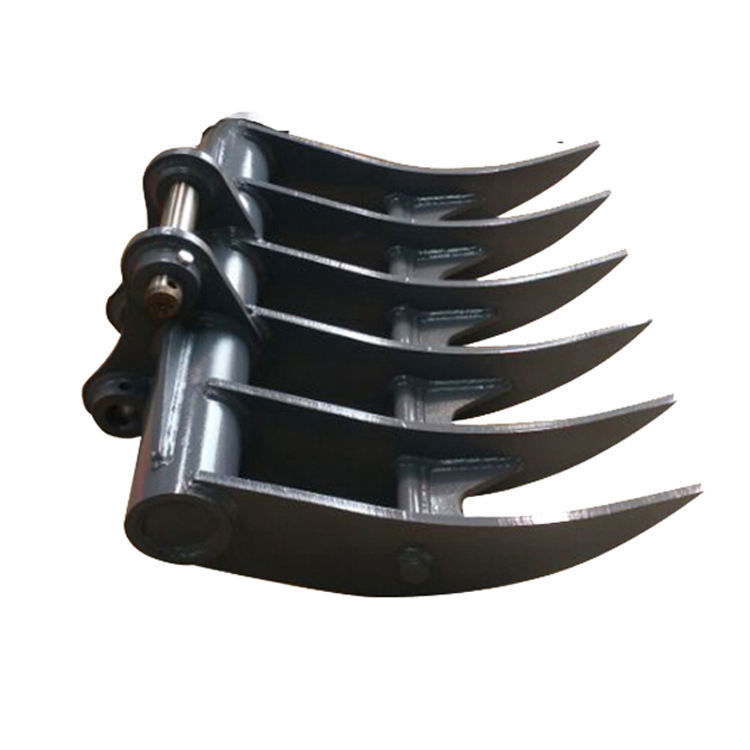

5T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching

5T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching

5T Excavator Ripper Tooth

30T Excavator Ripper Tooth

bucket ripper teeth 220kg

Place of Origin:

China

Brand Name:

WANXI

Model Number:

Joy-0308

Contact Us

Request A Quote
Product Details
Applicable Industries:
Farms, Energy & Mining, Building Material Shops, Construction
Weight:
220 Kg
Suitable Excavator(ton)::
1-300 Ton
Teeth:
5-8
Product Name:
Customizable Excavator Rake Bucket
Width:
1600
Color:
Black, Yellow, Red, Blue
After Warranty Service:
Video Technical Support, Online Support
Payment & Shipping Terms
Minimum Order Quantity
20pieces
Price
To be negotiated
Packaging Details
Standard wooden case or custom make as per required
Delivery Time
20days To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Ton/Tons per Year
Product Description

Excavator accessories rake multi-tooth bucket 5T-30T multi-tooth ripper one machine multi-purpose multi-tooth matching





Scarifiers specialize in weathered rock, loose hard soil, soft rock, and cracked rock formations. A ripper is also called a ripper. It can loosen hard soil, permafrost, soft rock, weathered rock, and rock formations with cracks, and can also pull out tree roots to remove obstacles for construction operations.

Ⅰ. Product Features of Excavator Single Hook Ripper Features of the ripper:

1 . The ripper is generally divided into single tooth, double tooth and three tooth;

2 . The ripper is made of high-quality Q345B manganese steel;

3 . The thickness of the ripper can be divided into 50MM-100MM according to the user's requirements or according to the tonnage of the equipped model;

4 . The ripper has a strong cutting ability, and it is convenient for digging and loading with the bucket after operation.

Ⅱ . Excavator single-hook rippers are widely used in Komatsu, Hitachi, Carter, Kobelco, Sumitomo, Kato, Hyundai, Doosan, , Case, Foton Lovol, JCB, Liebherr, Terex, Atlas, Kubota, Ishikawa Island, Bob, Sany Heavy Industry, Zoomlion, Sunward Intelligent, Jenyang Heavy Industry, Bangli Heavy Machinery, Xugong, Xuga John Deere, Liugong, Lonking, Shanzhong, XGMA, Yuchai, Nantes, Lishide, Pengpu, Xinyuan and other excavator brands



Description
XR-02
XR-04
XR-06
XR-08
XR-10
XR-12
XR-14
Weight(kg)
85
180
230
320
530
900
1120
Width(mm)
900
1200
1200
1500
1600
1800
2000
Tine Number(pcs)
8
9
9
9
9
9
10
Suitable
excavator(Ton)
1-2
3-4
5-7
8-10
11-16
18-26
20-30
Customization on Width & 1 ine Number is Available







5T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching 05T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching 15T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching 25T To 30T Excavator Ripper Tooth Rake Bucket Ripper Teeth Ripper Multi Tooth Matching 3

1 .WAX INJECTION:for Hitachi excavator bucket teeth Wax design of the desired castings are produced by injection molding.These designs are called patterns.
2 .ASSEMBLY:The patterns are attached to a central wax stick,called a sprue,to form a casting cluster or assembly.
3 .SHELL BUILDING:The shell is built by immersing the assembly in a liquid ceramic slurry and then into a bed of extremely fine sand.Up to eight layers may be applied in this manner.
4 .DEMAX:Once the ceramic is dry,the wax is melted out,creating a negative impression of the assembly within the shell.
5 .CONVENTIONAL CASTING:In the conventional process,the shell is filled with molten metal by gravity pouring.As the metal cools, the parts and gates,spure and pouring cup become one solid casting.
6 .KNOCKOUT:When the metal has cooled and solidified,the ceramic shell is broken off by vibration or knock-out machine.
7 .CUT OFF: The parts are cut away from the central spure using a high speed friction saw.
8 .CLEANING AND GRINDING: When the fomred casting parts are finished, they will be cleaned by hand work totally.After that, all the parts will be put in to the grinding machine for spot blasting. After these operations, the metal castings becomes identical to the original wax patterns.
9 .HEATTREATMENT: Once the parts for Hitachi excavator bucket teeth are finished by cleaning, they will be put in to heattreatment machine , in order to get a good harness and anti-wearness,as well as good impact performance.
10 .PAINTING: Sprat painting method is used to paint the parts with different colors. Then they will be given special time for dry, so that they can be kept as shining and smooth.
11 .PACKAGE: Man-made wooden carton is used for package,which is no need for fumigation.
12 .SHIPPMENT: When all these work is done, finished products for Hitachi excavator bucket teeth is ready to ship to every cornor of the world.
